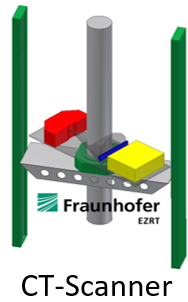

X-ray Computed Tomography

Inline qualification of flow phenomena in process equipment
  • Non-invasive acquisition of cross-sectional images of process equipment during operation
  • Image segmentation and data analysis provide quantitative results

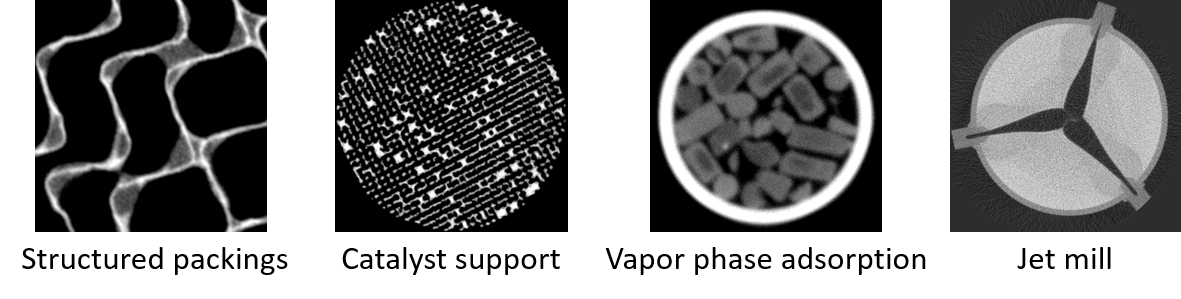

Applications
  • Column internals and packings for distillation, extraction, …
  • Adsorption in fixed beds
  • Catalyst carriers
  • Powder processing equipment
Adsorption in fixed beds: Breaktrough experiments

Measurement of breakthrough curves depending on the position
